PR1 R2Gas Pressure Regulator, Gas Pressure Regulator for Liquefied Propane and Natural Gas,1/2" NPT In/Out Gas Pipe, 1/2 PSI(3.5 kPa) Gas Inlet, 5"-10" WC Outlet Pressure,PA070003, AP5315294, PA070001

Brand: LEWUIO

Features:

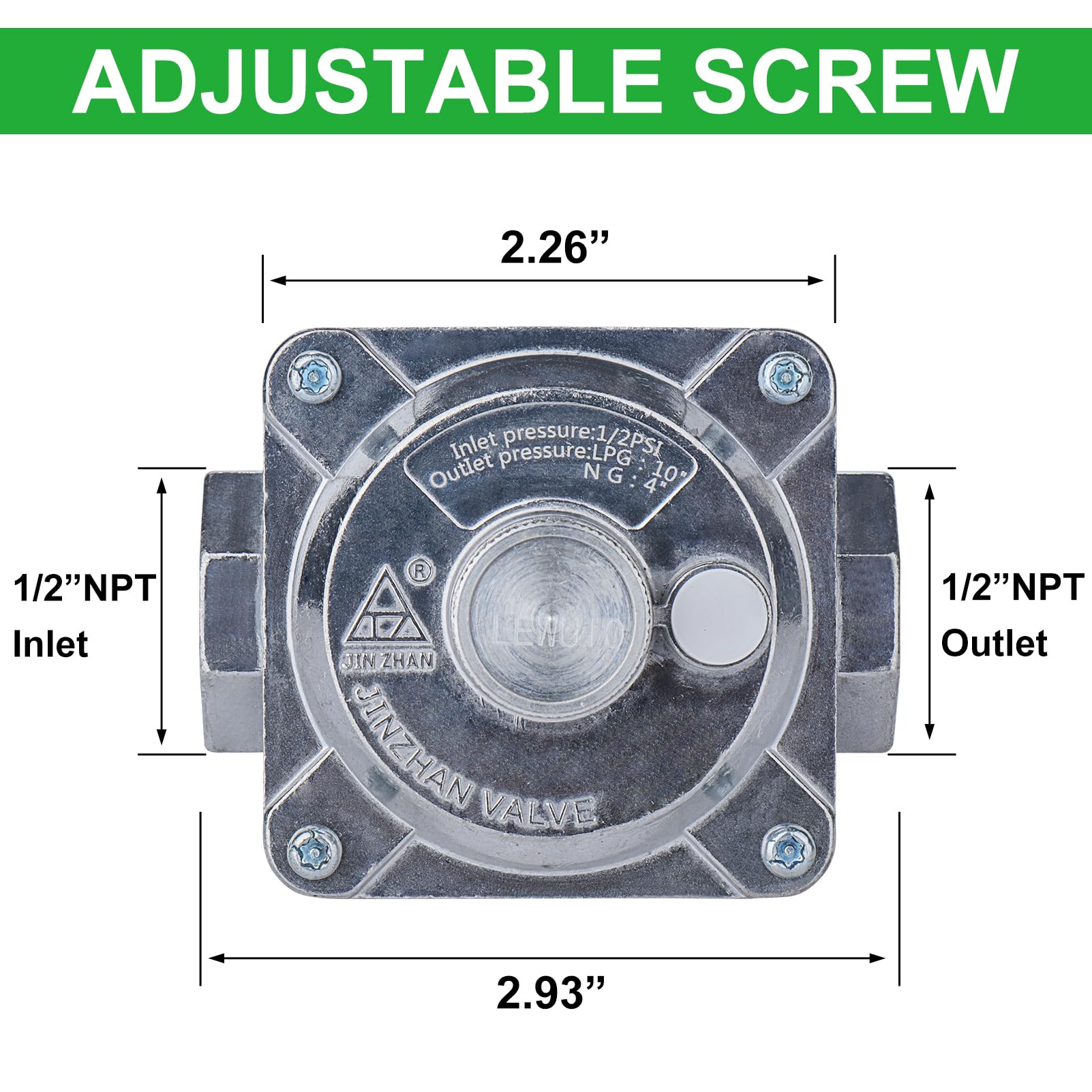

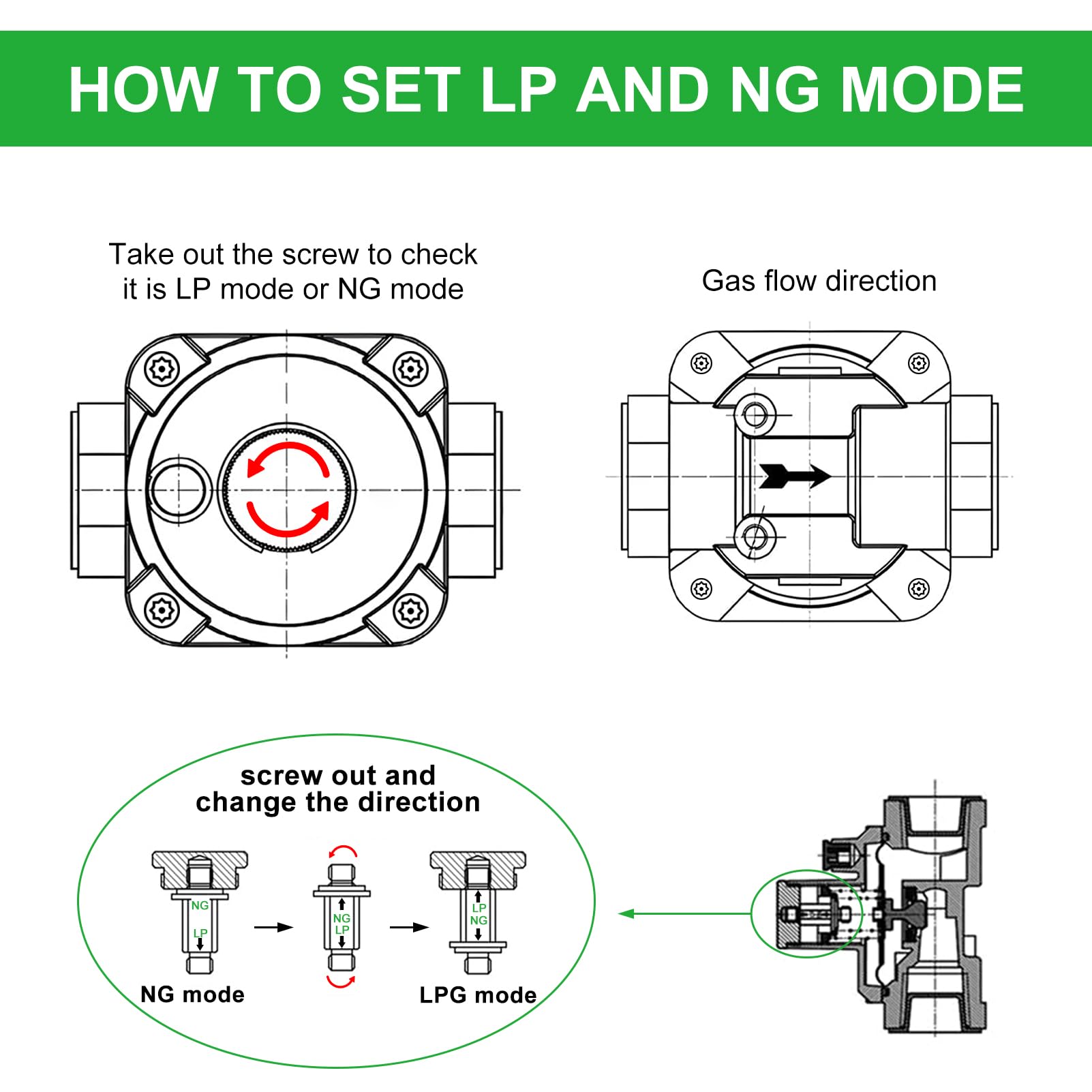

• Gas Pressure Regulator 1/2" x 1/2" NPT. Natural Gas(NG), Inlet gas pressure: 1/2 PSI, Outlet pressure: 10" Water Column. Liquid Propane(LP), Inlet gas pressure: 1.74 kPa, Outlet pressure: 5" Water Column.

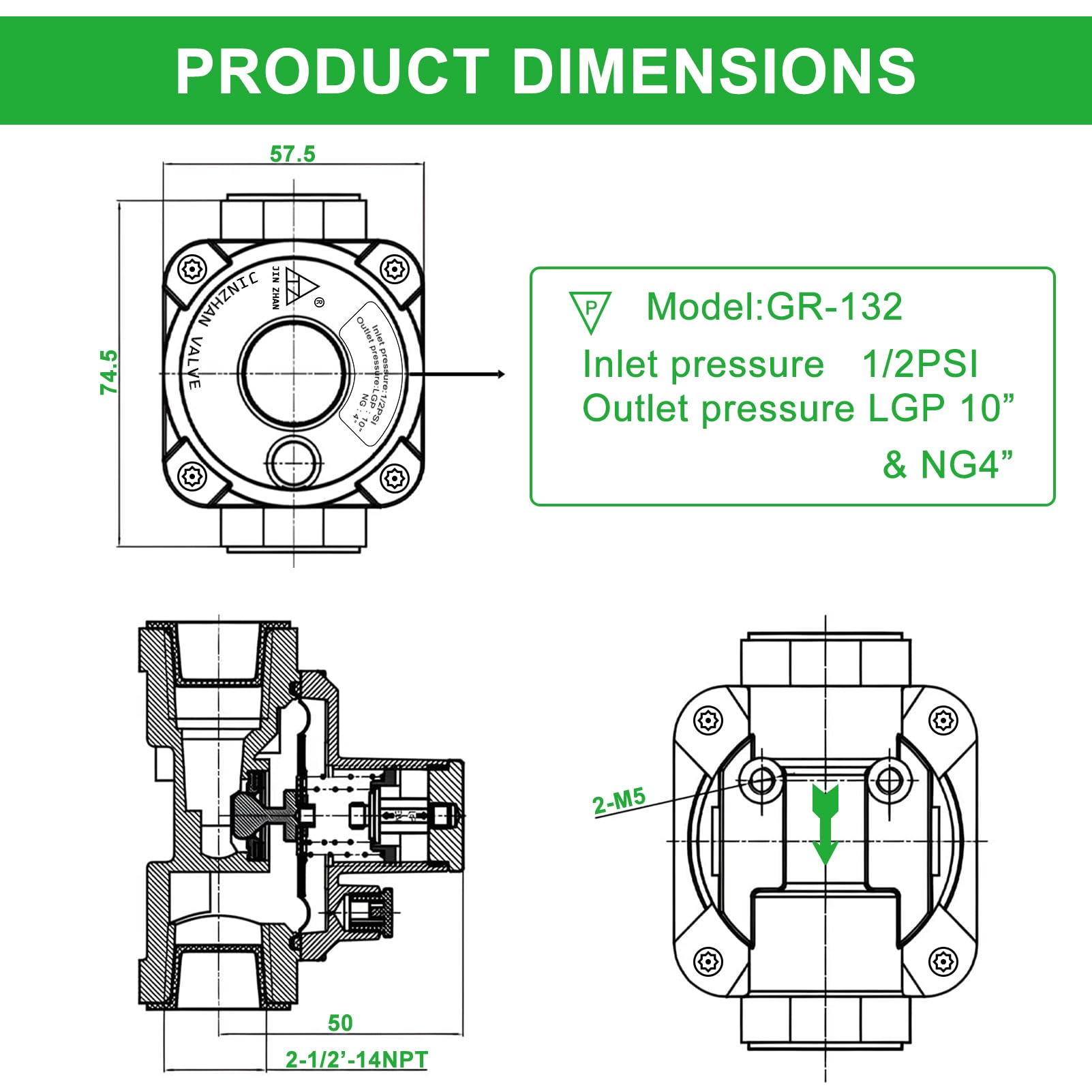

• Pipeline thread size 1/2" Inlet & 1/2" Outlet NPT GAS PIPE. Make sure you measure the gas pipe or regulator opening as close to 1 inch 。
• Cross Reference Info:Fits 531-011 King Refrigeration 7510P054-60 Maytag 205C1243P002 7510P053-60 Maytag 7510P049-60 Maytag C305132 Chambers 7510P023-60 Maytag，PA070001 Viking Y705894 Jacuzzi 0073930 Jacuzzi Y7074545 Jacuzzi Y07721300 Jacuzzi 44157 Jacuzzi 4670G704525 Jacuzzi Y0088783
• CAUTION This regulator has 1" openings for 1/2" gas pipes. The 1/2" gas pipe means interior diameter 1/2" but outside diameter is 1", refer to the pictures before buying.
• Suitable For:Conventional Oven/Stove, Cooktop

model number: 318122707

Part Number: 318122707

EAN: 0771617645976

Package Dimensions: 4.1 x 4.0 x 4.0 inches
