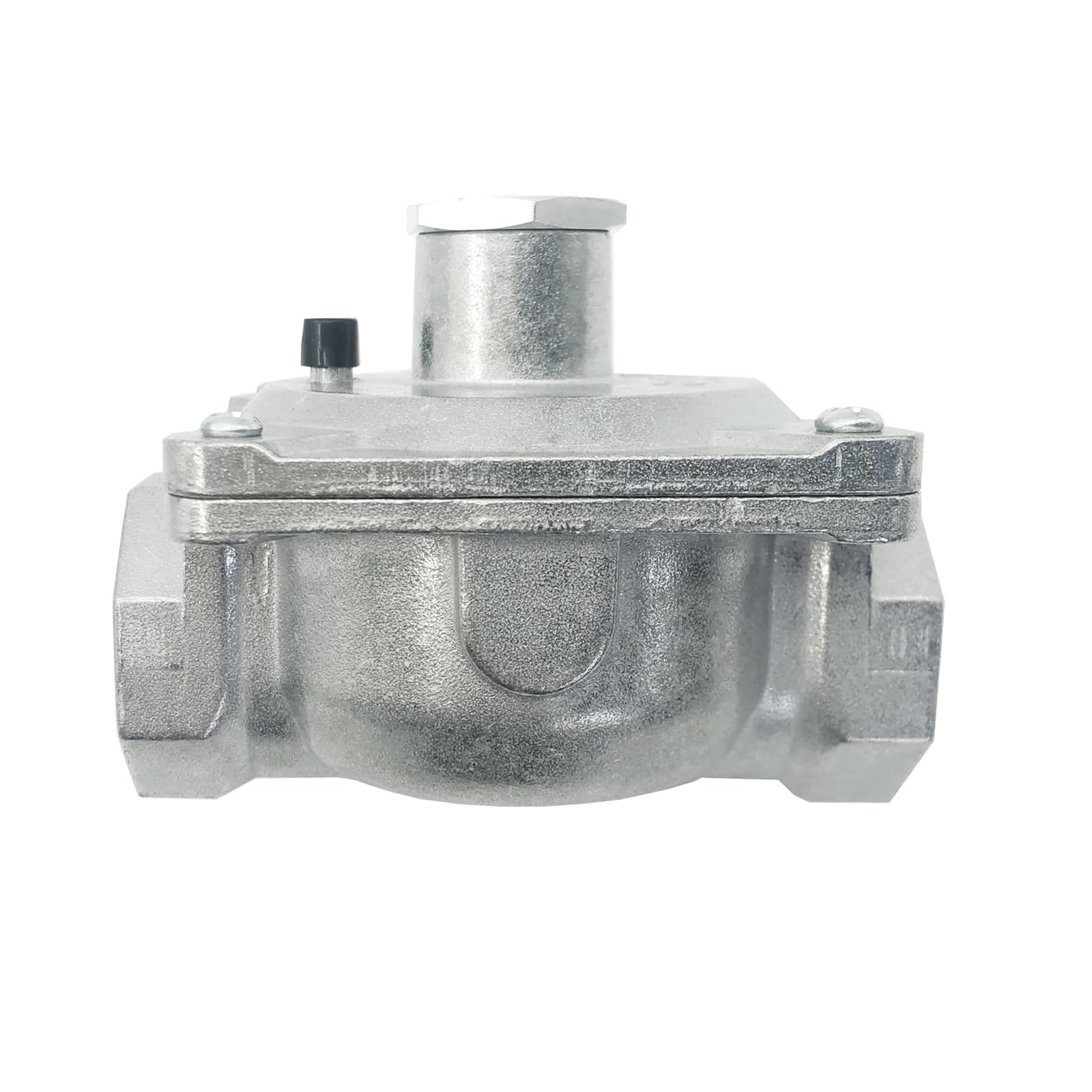

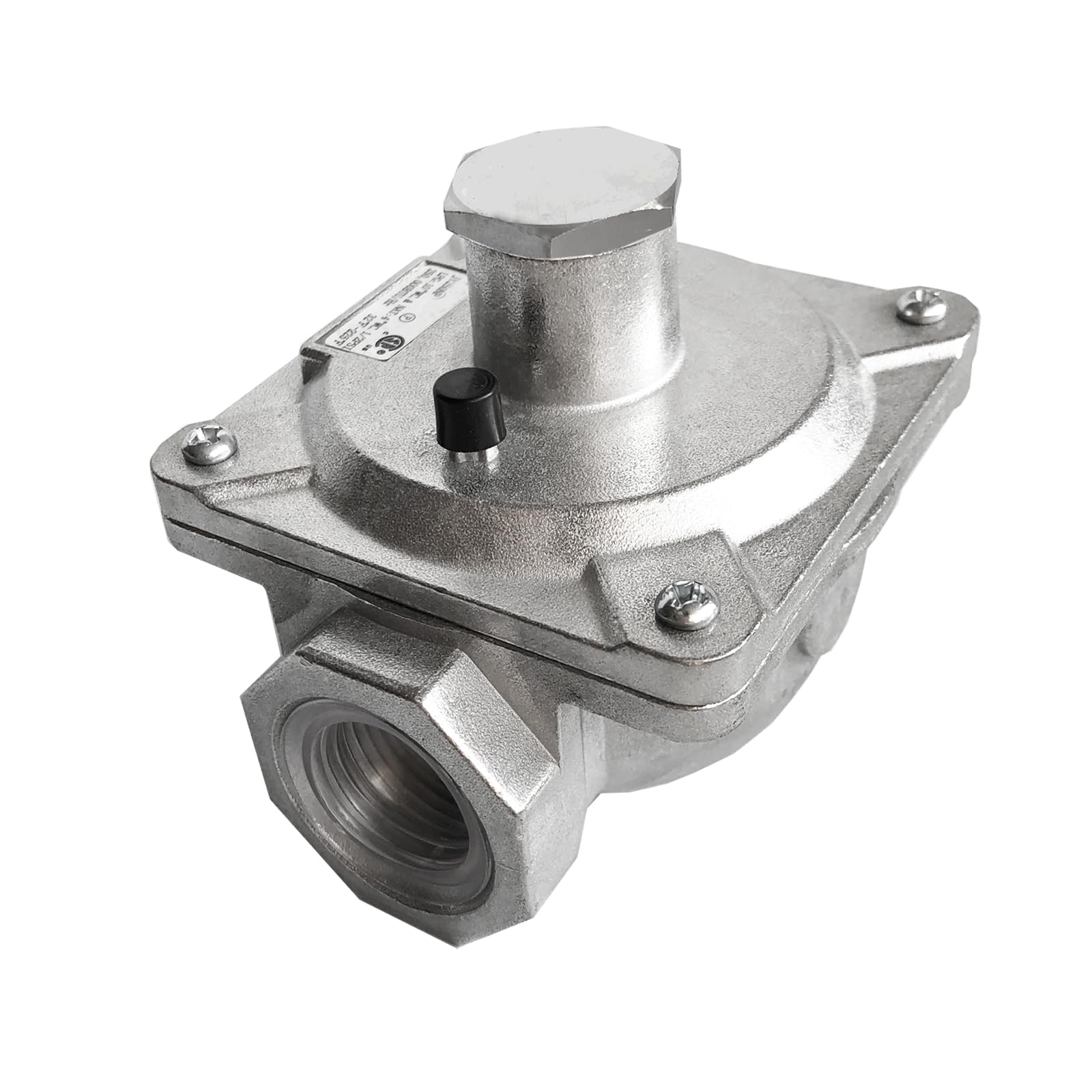

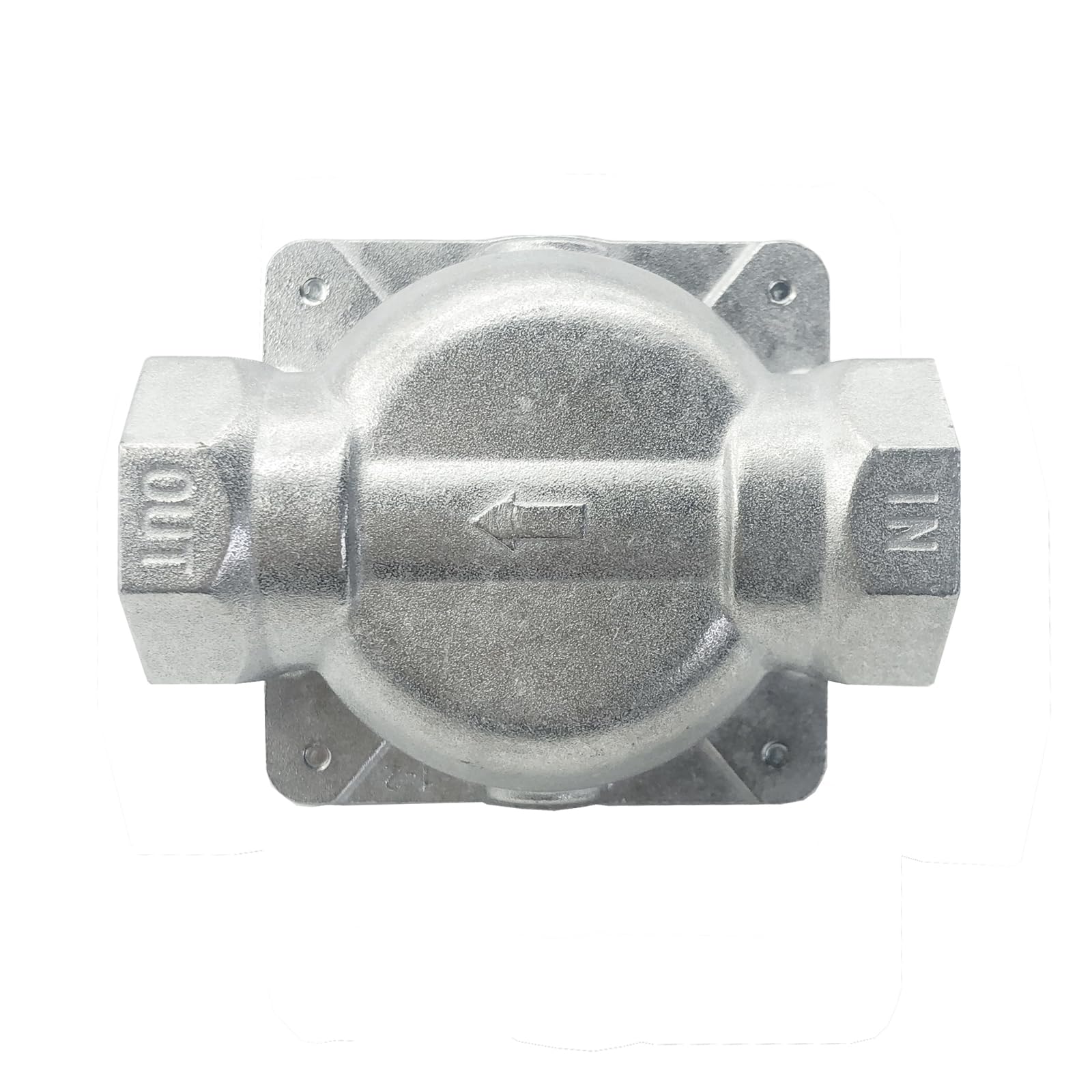

Natural Gas Pressure Regulator with 3/4" FNPT Thread, 1/2 PSIG Inlet Pressure and 4" &10" WC Outlet For Grill, NG Regulator for Standby Generator, Construction Heaters, Stove Range Pipe Lines

Brand: GRILLJOB

Features:

• Gas Type & Pressure - For both NG & LP Gas, 2 Positions, LPG=10" W. C & NG=4" W. C, Max inlet pressure PSI: 1/2 (3.5KPa), Outlet pressure 4" or 10" Water Column

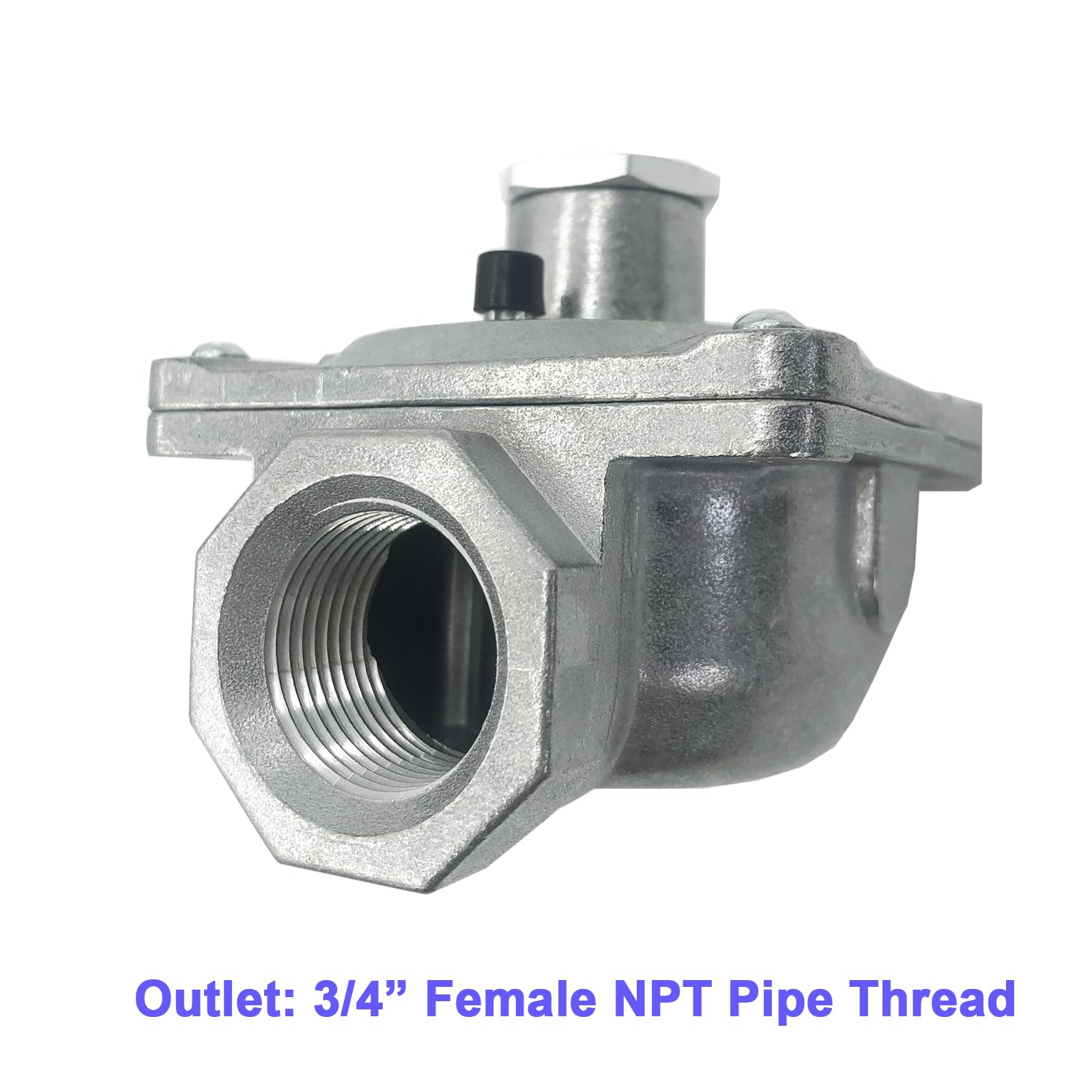

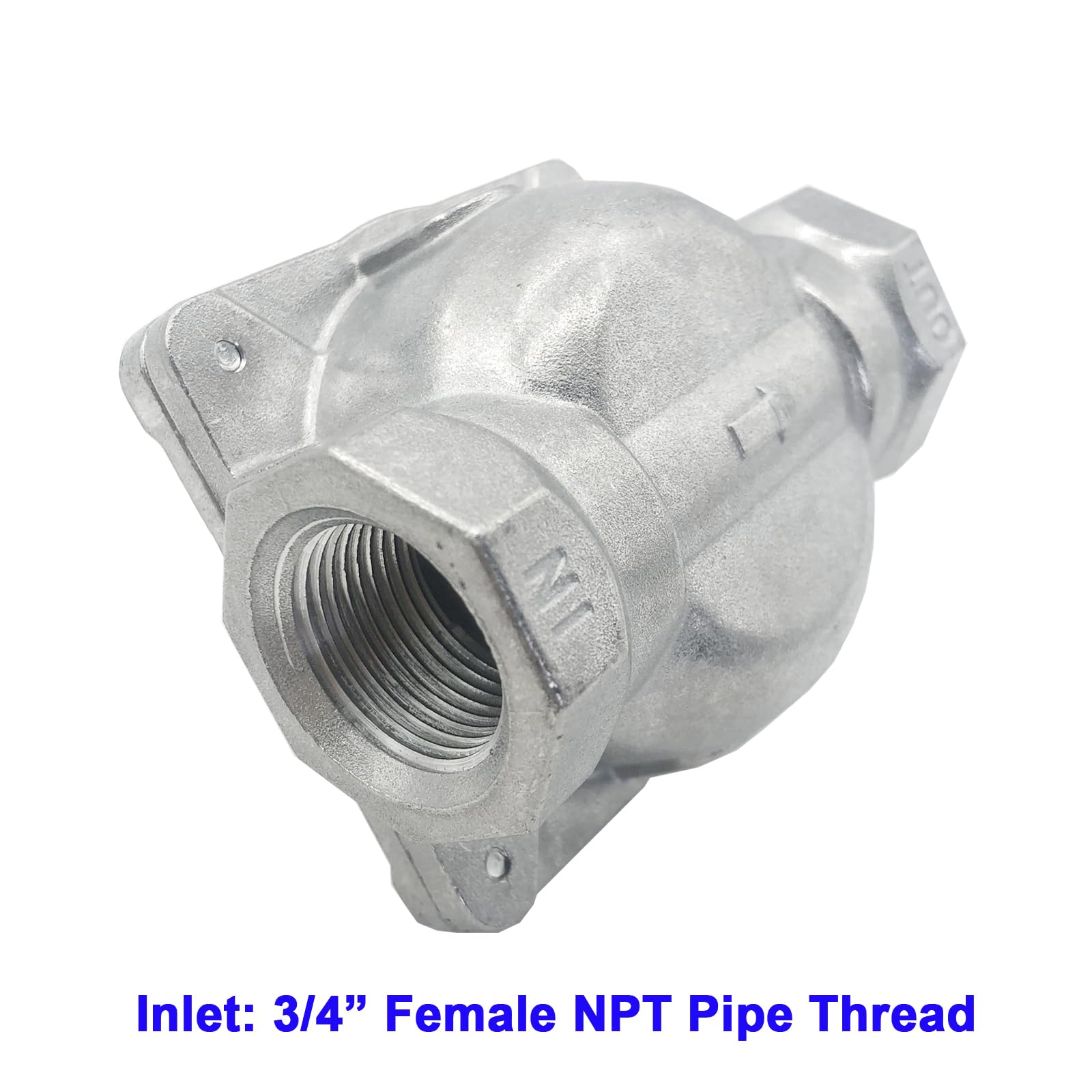

• Pipe Thread Size - Inlet 3/4" x outlet 3/4" FNPT Gas Pipe threads. Make sure you measure the gas pipe or regulator opening as close to 1-1/16 inch. When apply to LP gas, it needs to work with an external regulator (NOT supplied). Install the external regulator between the propane supply source and Maxitrol regulator.
• Safety - Our Pressure Regulators Pass CSA certificate for your safety. no gas leaks, ensures safety while using grill, air flow is kept stable and at appropriate levels.
• Applications- Stable Gas flow, for propane fire pit, Natural gas fire pit, gas range, water heater, high BTU output outdoor cooking appliances, construction heaters, and standby generators, Gas grills, water heater, oven, Gas Welding Equipment, gas applainces, NG LP gas pressure regulator

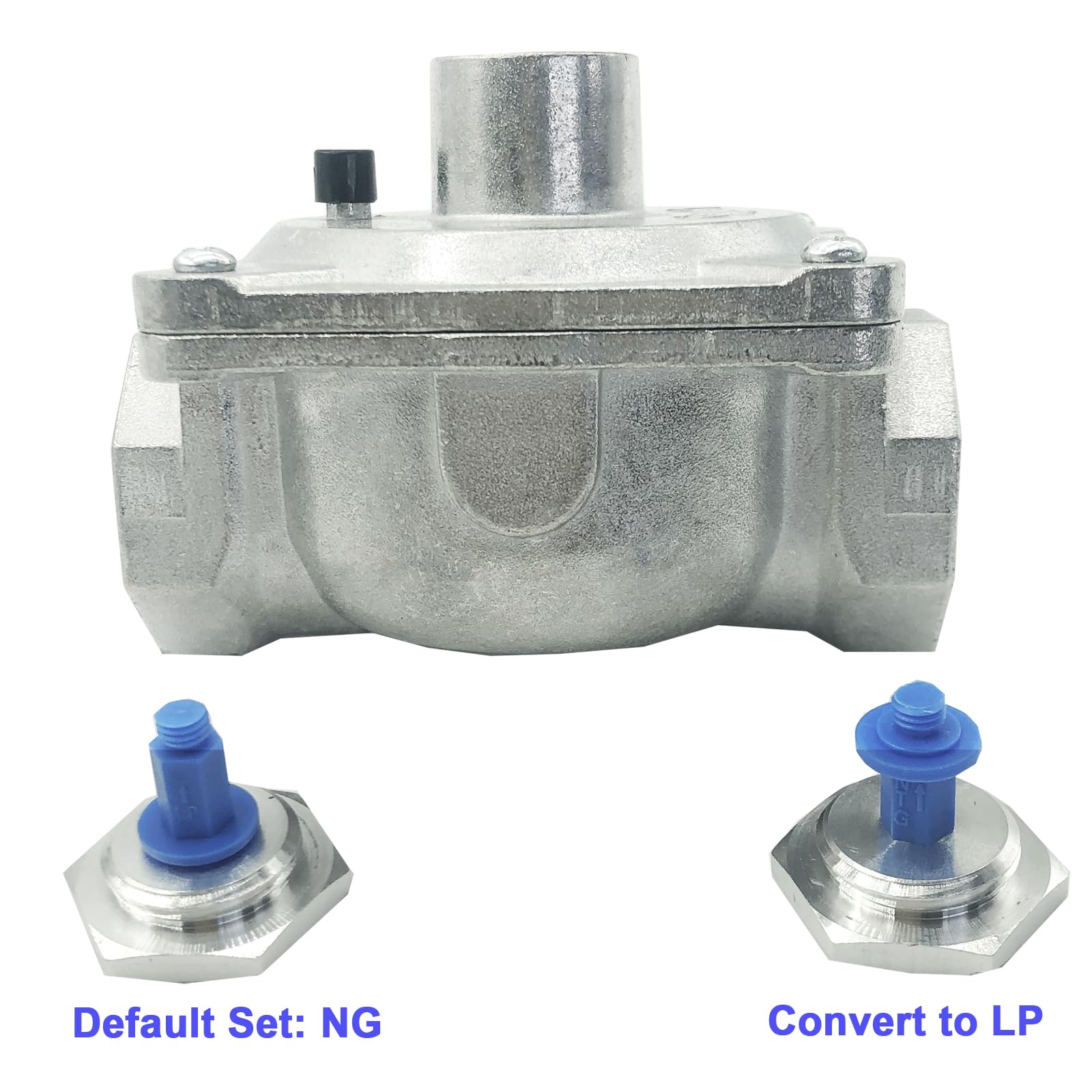

• Default Setting - NG Gas position. If you want to use for LG Gas, Please take the Hex Screw out to reverse the plastic screw.

Details: Gas Type- LPG 10" W. C & NG 4" W. C, Max inlet pressure PSI: 1/2 (3.5KPa), Large Volume Gas Flow: 250,000BTU/ Hr. outlet pressure 4"-10" Water Column, Work as both propane regulator and natural gas regulator. This regulator is for 3/4" NPTgas pipes. 3/4" IN and 3/4" OUT Female Pipe Thread. The 3/4" gas pipe means interior diameter 3/4" Make sure you measure the gas pipe or regulator opening as close to 1-1/16 inch . Inlet pressure (CSA rated and Maximum operating): 1/2 PSI Outlet pressure range: 4” - 10” Water Column Ambient operating temperature range: 32°F - 225°F (0°C - 107°C). Applications- Natural LP Gas grills, heater, oven, Gas Welding Equipment Attention: NOTE: GAS PRESSURE REGULATORS WILL NOT TURN OFF THE FLOW OF GAS. CAUTION: Never connect regulator directly to the propane supply source. Maxitrol regulators require an external lp gas regulator (NOT supplied). Install the external regulator between the propane supply source and Maxitrol regulator. Install the regulator properly with gas flowing as indicated by the arrow on the casting. NOTE - Do not install the regulator too close to the heating equipment or use in very cold environment.

Package Dimensions: 4.5 x 3.3 x 3.1 inches
